Description

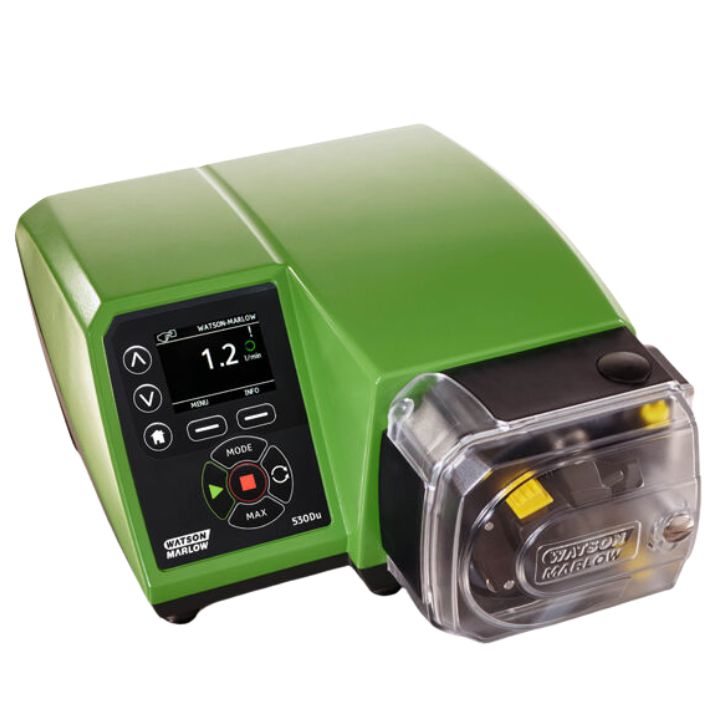

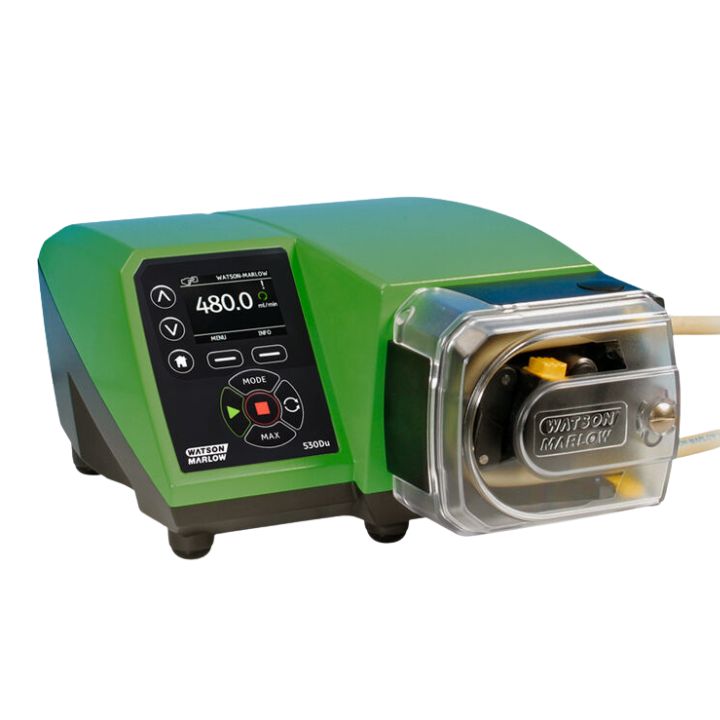

Peristaltic Pump for Accurate Dosing and Fluid Transfer
Watson-Marlow 530 Series is a range of cased peristaltic process pumps designed for accurate dosing, metering, dispensing and liquid transfer applications.
The pumped fluid remains completely contained inside the tubing, isolating it from the pump mechanism. This makes the pump suitable for applications requiring clean, controlled and repeatable fluid handling.
The 530 Series is suitable for food and beverage processing, chemical dosing, water treatment, industrial manufacturing and other process applications.
Key Features and Benefits
- Flow rates from 0.004 ml/min to 3.5 L/min
- Wide 2,200:1 speed-control range
- Adjustable speed from 0.1 to 220 rpm
- Accurate and repeatable dosing and fluid transfer
- Fluid remains completely contained inside the tubing
- Reduced risk of pump contamination
- Colour display with easy menu navigation
- Three-level security PIN protection
- IP31 and IP66 pump-drive options
- Multiple continuous-tubing and tube-element pumpheads
- Manual, analogue, digital and network-control options
- Suitable for dosing, metering, transfer and dispensing
Applications
- Chemical dosing and metering
- Food ingredient dosing
- Beverage processing
- Flavour and additive dosing
- Sauce and syrup transfer
- Liquid food transfer
- Batch dispensing
- Water-treatment chemical dosing
- Industrial process-fluid transfer
- Laboratory and pilot-process applications
- Automated production systems
- Viscous and shear-sensitive fluid handling
Available Pumphead Options
520R Pumphead
- Designed for continuous 1.6 mm wall tubing
- Compatible with multiple tubing materials and bore sizes
- Maximum flow rate up to approximately 2.4 L/min
- Suitable for accurate dosing and transfer applications
520R2 Pumphead
- Designed for continuous 2.4 mm wall tubing
- Supports tubing bore sizes up to 9.6 mm
- Maximum flow rate up to 3.5 L/min
- Suitable for higher-flow transfer applications
520REL Pumphead
- Uses LoadSure tube elements
- Designed for low-pressure applications
- Maximum flow rate up to 3.5 L/min
- Fast and convenient tube-element replacement
520REM Pumphead
- Uses LoadSure tube elements
- Designed for medium-pressure applications
- Maximum flow rate up to approximately 1.5 L/min
520REH Pumphead
- Designed for higher-pressure dosing applications
- Uses compatible LoadSure tube elements
- Maximum flow rate up to approximately 450 ml/min
520RET Pumphead
- Compatible with Maxthane LoadSure elements
- Suitable for demanding fluid-transfer applications
- Maximum flow rate up to approximately 2.9 L/min
505L Pumphead
- Dual-channel pumphead
- Designed for low-pulse dispensing
- Suitable for accurate and repeatable filling applications
Control Options
- Manual keypad control
- Remote analogue control
- Remote digital control
- RS232 communication
- RS485 communication
- PROFIBUS
- PROFINET
- EtherNet/IP
- SCADA integration
Technical Specifications
| Product series | Watson-Marlow 530 Series |
|---|---|
| Pump type | Cased peristaltic dosing and process pump |
| Minimum flow rate | 0.004 ml/min |
| Maximum flow rate | 3.5 L/min |
| Speed range | 0.1–220 rpm |
| Speed-control ratio | 2,200:1 |
| Operating temperature | 5°C to 40°C |
| Ingress protection | IP31 or IP66 |
| Power supply | 115/230 V, single phase, 50/60 Hz |
| Power rating | 135 VA |
| Pumphead options | 520R, 520R2, 520REL, 520REM, 520REH, 520RET and 505L |
| Compatible tubing bore sizes | 0.5, 1.6, 3.2, 4.8, 6.4, 8 and 9.6 mm |
| Control options | Analogue, digital, RS232, RS485, PROFIBUS, PROFINET, EtherNet/IP and SCADA |
| Applications | Dosing, metering, dispensing and liquid transfer |
Food and Beverage Processing Pump
The Watson-Marlow 530 Series can be configured for accurate ingredient dosing, flavour addition, liquid-food transfer, beverage processing and batch dispensing. The peristaltic operating principle keeps the product contained within the tubing and supports hygienic fluid handling.
Industrial Dosing Pump
The pump can also be used for controlled chemical dosing, water-treatment applications, industrial liquid transfer and automated process systems. Different pumpheads, tubing materials and control options are available to match the required fluid, flow rate and process conditions.
Configuration notice: Actual flow rate, pressure capability and chemical compatibility depend on the selected pumphead, tubing material, tube size, drive and process fluid. Confirm the complete pump configuration before ordering.
Peristaltic Pump Supplier in UAE
Request a quotation for the Watson-Marlow 530 Series peristaltic pump in Dubai and across the UAE. Provide the required flow rate, operating pressure, fluid name, temperature, viscosity, tubing material and preferred control method for correct pump selection.
