Description
Industrial Peristaltic Pump for High-Flow Fluid Transfer

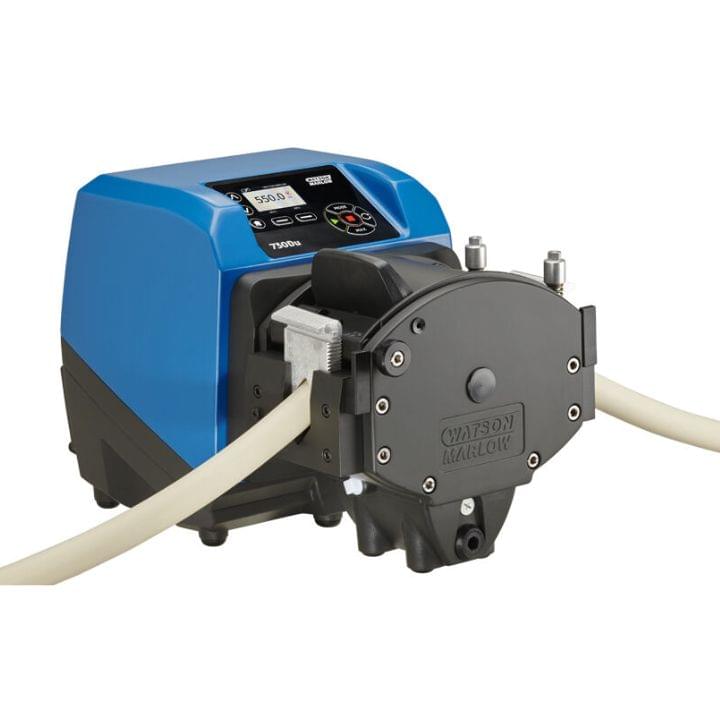

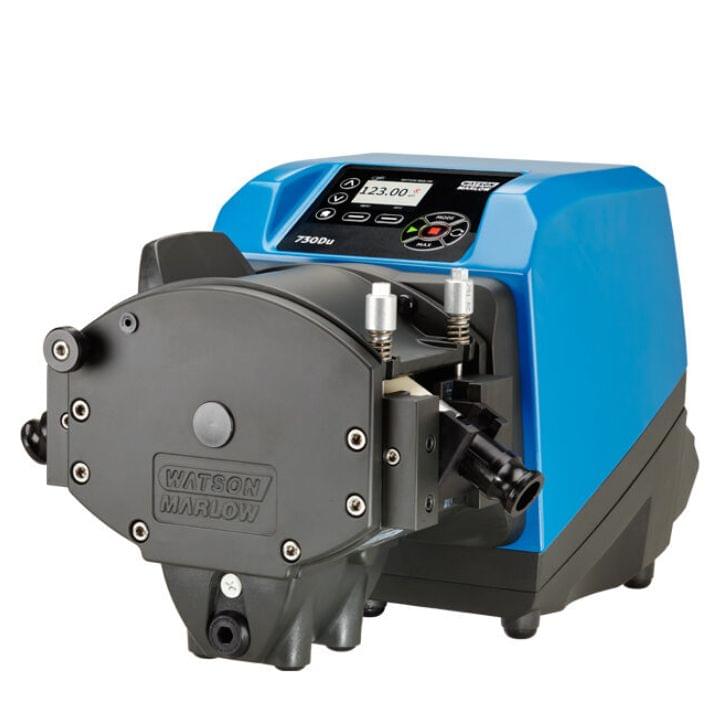

Watson-Marlow 730 Series cased peristaltic pumps are designed for high-flow process-fluid transfer, metering, circulation and controlled pumping applications.
The pumped fluid remains contained inside the tubing or LoadSure tube element, helping isolate the product from the pump mechanism. This operating principle supports clean fluid handling and simplifies routine tube replacement.
The 730 Series can be configured with single or twin pumpheads for food and beverage production, industrial processing, chemical handling, water treatment and other demanding applications.
Key Features and Benefits
- Flow rates from 0.12 to 3,300 L/h
- Single-pumphead flow rates up to 2,000 L/h
- Twin-pumphead flow rates up to 3,300 L/h
- Wide 3,600:1 speed-control range
- Adjustable speed from 0.1 to 360 rpm
- Flow or speed display options
- Colour display with intuitive menu navigation
- Three-level security PIN protection
- IP66 and NEMA 4X protected drive
- Continuous tubing and LoadSure tube-element options
- Single- and twin-pumphead configurations
- Manual, analogue, digital and network-control options
- Suitable for fluid transfer, metering and process pumping
Applications
- High-flow industrial fluid transfer
- Food ingredient transfer
- Beverage processing
- Sauce and syrup transfer
- Viscous liquid pumping
- Chemical transfer and metering
- Water and wastewater treatment
- Industrial process-fluid circulation
- Batch transfer and filling
- Slurry and abrasive-fluid handling
- Shear-sensitive product transfer
- Mining and mineral-processing applications
- Automated industrial production systems
Available Pumphead Options
720R Continuous Tubing Pumphead
- Single four-roller pumphead
- Designed for continuous tubing
- Compatible with 4.8 mm wall-thickness tubing
- Supports tube bores from 9.6 to 25.4 mm
- Flow rates up to 2,000 L/h
- Suitable for process-fluid transfer applications
720RE LoadSure Pumphead
- Single four-roller pumphead
- Designed for LoadSure tube elements
- Provides convenient tube-element replacement
- Supports tube bores from 9.6 to 25.4 mm
- Flow rates up to 2,000 L/h
720R with 720RX Extension Pumphead
- Twin pumphead for continuous tubing
- Provides two channels of fluid flow
- Flow rates up to 3,300 L/h depending on configuration
- Suitable for high-flow transfer or two-channel applications
720RE with 720REX Extension Pumphead
- Twin LoadSure tube-element configuration
- Provides two fluid-flow channels
- Flow rates up to 3,300 L/h depending on configuration
- Supports rapid replacement of compatible tube elements
Control and Communication Options
- Manual keypad operation
- Remote start and stop
- Remote direction control
- 0–10 V analogue control
- 4–20 mA analogue control
- RS485 communication
- PROFIBUS communication
- PROFINET communication
- EtherNet/IP connectivity
- SCADA integration
- Configurable digital inputs and outputs
- Leak-detector input on compatible models
- Pressure and flow-sensor inputs on compatible models
Technical Specifications
| Product range | Watson-Marlow 730 Series |
|---|---|
| Product type | Industrial cased peristaltic process pump |
| Minimum flow rate | 0.12 L/h |
| Maximum flow rate | 3,300 L/h, configuration dependent |
| Single-pumphead maximum flow | Up to 2,000 L/h |
| Twin-pumphead maximum flow | Up to 3,300 L/h |
| Maximum operating pressure | Up to 2 bar, tubing and configuration dependent |
| Speed range | 0.1–360 rpm |
| Speed-control ratio | 3,600:1 |
| Pumphead options | 720R, 720RE, 720RX and 720REX |
| Number of channels | Single or twin |
| Compatible tubing bore sizes | 9.6, 12.7, 15.9, 19 and 25.4 mm |
| Tubing wall thickness | 4.8 mm |
| Operating temperature | 5°C to 40°C |
| Ingress protection | IP66 / NEMA 4X |
| Power supply | 100–120 V or 200–240 V, single phase, 50/60 Hz |
| Power rating | 350 VA |
| Control options | Analogue, digital, RS485, PROFIBUS, PROFINET, EtherNet/IP and SCADA |
Food and Beverage Process Pump
The Watson-Marlow 730 Series can be configured for transferring sauces, syrups, concentrates, ingredients and other process liquids. The fluid remains inside the tubing, reducing direct contact between the pumped product and the mechanical pump components.
Industrial Fluid Transfer Pump
The high-flow capacity makes the 730 Series suitable for production transfer, circulation, batch processing and chemical-handling duties. Pumphead, tubing and control configurations can be selected according to the required flow, pressure, fluid and automation system.
Peristaltic Pump Supplier in UAE
Request a quotation for the Watson-Marlow 730 Series industrial peristaltic pump in Dubai and across the UAE. Provide the required flow rate, operating pressure, fluid name, viscosity, temperature, tubing material, connection type and control method for correct pump selection.
Configuration notice: Maximum flow and pressure cannot always be achieved simultaneously. Actual performance depends on the selected pumphead, tubing bore, tubing material, discharge pressure and operating speed.
